Photo Interrupter

PHOTO INTERRUPTER [Transmission type]

PRODUCT INTRODUCTION

KI-series is a photo interrupter with super-high performance.  They feature extremely high performance with 0.5mm of slit width detector.

APPLICATIONS

・Card Reader
・Ticket Vending Machine
・Bill Exchanger.

SPECIFICATIONS

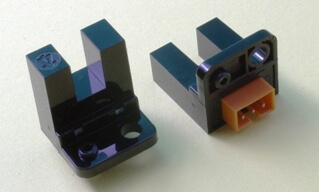

DUST-PROOF MODEL

DUST-PROOF MODEL

KI-1232 Analog Output :  Photo transistor

Product Catalogue
Item Symbol Rating Unit Condition
Ta=25°
Emitter Supply Voltage VCC Typ. 5.0 V (Max. 6V )
Detector Dark Current ICEO Max. 0.2 μA VCE=10V, 0lux
Coupled Light Current IC Min. 0.3 mA VCC=5V
Response Time TR/TF Typ. 50 μsec VCC=5V, IC=100μA,
RL=1kΩ

KI-1233, KI-1234 Output :  Photo IC
KI1233 (operating mode:  High Level at the Time of Beam Detection)

Product Catalogue
Item Symbol Rating Unit Condition Ta=25℃
Supply Voltage VCC Typ. 5.0 V (Max. 6V)
Low-Level Supply Current ICCL Max. 25 mA Blocking the Beam by Object
High-Level Output Current ICCH Max. 25 mA Detecting the Beam
Low-Level Output Voltage VOL Max. 0.4 V Blocking the Beam by Object, IOL=16mA
High-Level Output Voltage VOH Min. VCCx0.9 V Detecting the beam, RL=47kΩ
Frequency f Min. 3000 Hz
Response Time Rise TR 1.47 μsec RL=15kΩ
Fall TF 0.02

KI1234 (operating mode: Low level at the time of beam detection)
Item Symbol Rating Unit Condition Ta=25℃
Supply Voltage VCC Typ. 5.0 V (Max. 6V)
Low-Level Supply Current ICCL Max. 25 mA Detecting the beam
High-Level Output Current ICCH Max. 25 mA Blocking the beam by object
Low-Level Output Voltage VOL Max. 0.4 V Detecting the beam, IOL=16mA
High-Level Output Voltage VOH Min. VCCx0.9 V Blocking the beam by object, RL=47kΩ
Frequency f Min. 3000 Hz
Response Time Rise TR 1.47 μsec RL=15kΩ
Fall TF 0.02

* VCC=Max. 6V

FLEXIBLE MODEL

FLEXIBLE MODEL

Excellent flexibility in installation so as to be utilized for the applied equipment in common use

KI-1400, KI-1401 Output :  Photo IC
KI1400 (Operating Mode: High Level at the time of Beam Detection )

Product Catalogue
Item Symbol Rating Unit Condition [Ta=25℃]
Supply Voltage VCC Typ. 5.0 V
Low-Level Supply Current ICCL Max. 25 mA Blocking the Beam by Object
High-Level Output Current ICCH Max. 25 mA Detecting the beam
Low-Level Output Voltage VOL Max. 0.4 V Blocking the beam by object, IOL=16mA
High-Level Output Voltage VOH Min. VCCx0.9 V Detecting the beam, RL=47kΩ
Frequency f Min. 3000 Hz
Response Time Rise TR 1.47 μsec RL=15kΩ
Fall TF 0.02

* VCC=Max. 6V

KI1401 (operating mode: Low level at the time of beam detection)
Item Symbol Rating Unit Condition [Ta=25℃]
Supply Voltage VCC Typ. 5.0 V
Low-Level Supply Current ICCL Max. 25 mA Detecting the beam
High-Level Output Current ICCH Max. 25 mA Blocking the beam by object
Low-Level Output Voltage VOL Max. 0.4 V Detecting the beam, IOL=16mA
High-Level Output Voltage VOH Min. VCCx0.9 V Blocking the beam by object, RL=47kΩ
Frequency f Min. 3000 Hz
Response Time Rise TR 1.47 μsec RL=15kΩ
Fall TF 0.02
