Parallel Ray LED
PRODUCT INTRODUCTION
The Parallel ray irradiated from its light source is a key for the precision of optical rotary encoders. Our Parallel Ray LED can help you for the hight reliability of your products with an excellent performance.
SPECIFICATIONS
| Parameter | Symbol | Value | Unit | Condition (Ta=25°) | |
|---|---|---|---|---|---|
| Forward Current | If | 100 | mA | ||
| Power Output | Po | Typ | 10.0 | mW | If = 50mA |
| Forward Voltage | VF | Typ Max |
1.5 2.0 |
V | |
| Peak Wavelength | λp | Typ | 870 | nm | |
| Viewing Half Angle | θ 1/2 | Typ | ±5 | ° | |

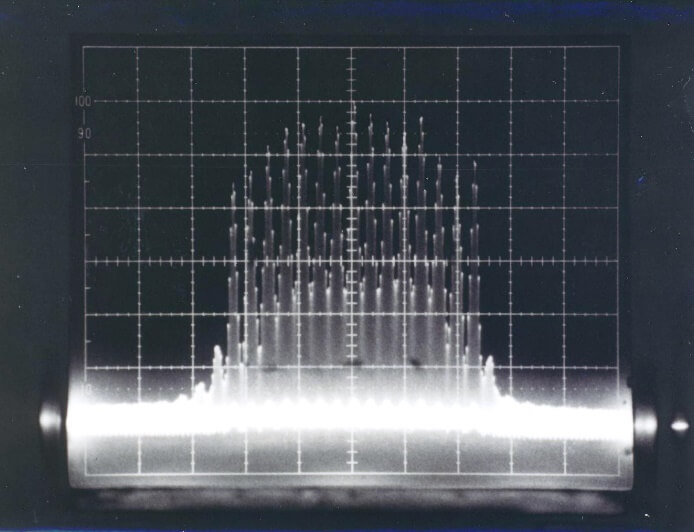

Radiation Pattern of LED through Glass Disk with 3 (three) Slits
